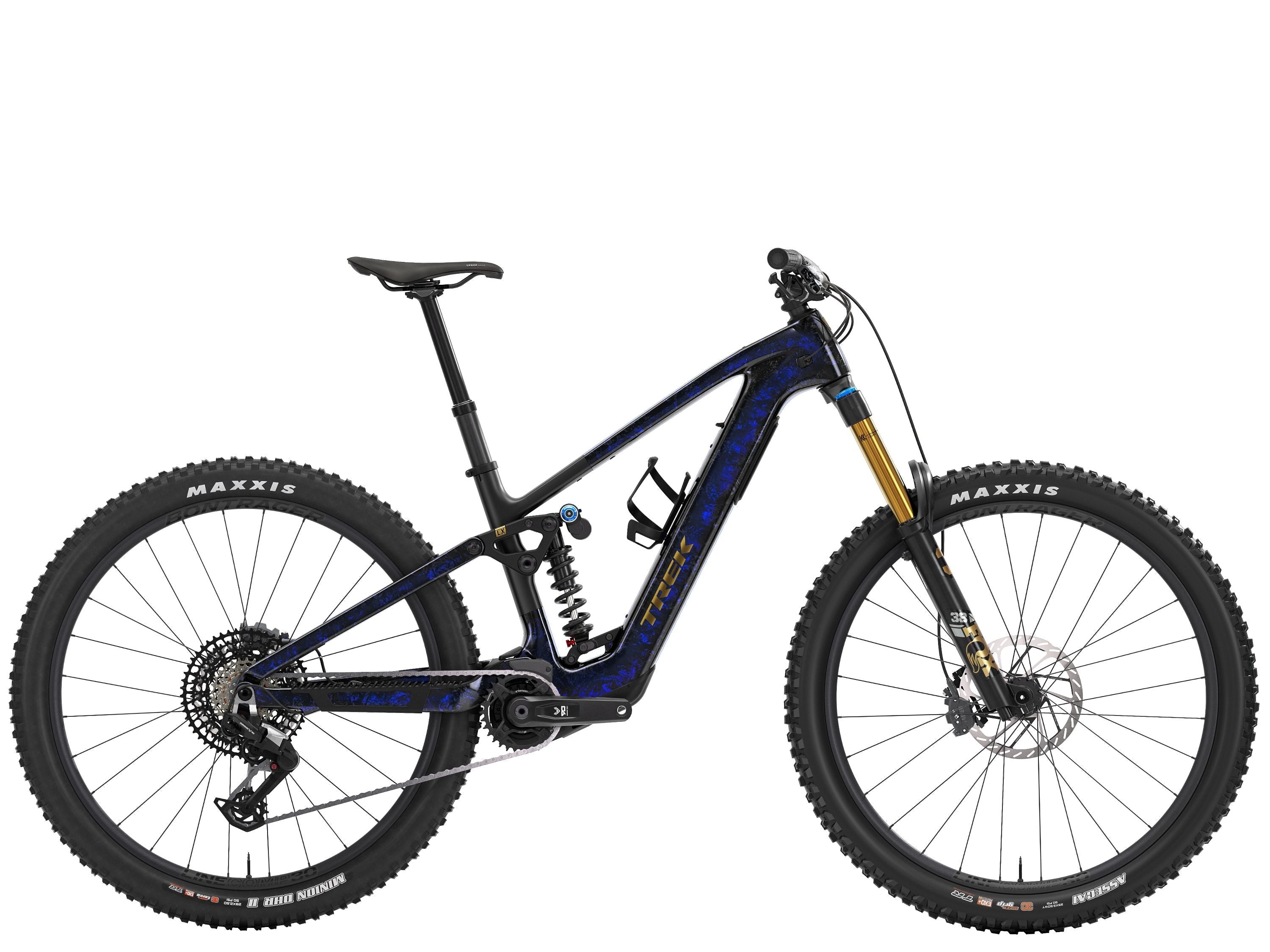

Name: FUEL+ LX 9.8 EA90 US S Gloss Navy Smoke/Matte Trek Black
Brand: my shop
SKU: 5341014
Price: 7133.00 GBP
Availability: InStock

FUEL+ LX 9.8 EA90 US S Gloss Navy Smoke/Matte Trek Black

£7,133.00

£7,133.00 £14,265.00

Taxes included. Shipping calculated at checkout.

Fuel+ LX 9.8 Eagle 90 is a hard-hitting electric mountain bike for tackling endless laps. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a quiet, smooth boost, while a Fox Factory suspension package with a coil shock (160mm rear, 170mm front) keeps you feeling confident in the roughest terrain. A fuss-free SRAM Eagle 90 transmission gives you smooth mechanical shifting, and SRAM Maven Bronze 4-piston brakes keep modulation and control on lock.

Adapt, rip, repeat

Only you can define your perfect trail bike — that's why Fuel+ is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.

Adjustable leverage rate

Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.

Zero stack integrated headset

With a ZS standard headset, you've got tons of options for aftermarket upgrades, including angle adjust or anodized colors.

TQ HPR60

Fuel+'s new HPR60 motor delivers more power and torque than before, and kicks in at a lower cadence so you feel the boost earlier. Plus, a 580Wh battery gives you more efficient power for your longest rides yet.

Fresh frame design

Fuel+ features a new frame that gives you tons of room for range extenders, long dropper posts, bigger shocks, frame bags, and more.

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Frame	OCLV Mountain Carbon, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork	Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel
Shock	Fox DHX2, 205mm x 65mm
Wheel Front	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel Rear	Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 29''
Tire	Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Tire Part	Bontrager TLR sealant, 6oz
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	SRAM Eagle 90, 12 speed
Rear Derailleur	SRAM Eagle 90, T-Type
Crank Arm	SRAM Eagle 90 e-MTB crank arms, 160mm length
Cassette	SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain	SRAM GX Eagle, T-Type, 12 speed
Chainring	SRAM T-Type, 32T, alloy
Brake	SRAM Maven Bronze 4-piston hydraulic disc // SRAM Maven Bronze 4-piston hydraulic disc
Brake Rotor	SRAM HS2, 6-bolt, 200mm
Saddle	Verse Short Comp, steel rails, 145mm width
Seatpost	Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Handlebar	Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
Stem	Bontrager Elite, 35mm, 0 degree, 45mm length
Grips	Trek Line Elite, lock-on
Battery	TQ 580Wh
Controller	TQ color LED display with Bluetooth & ANT+ connectivity
Motor	TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Charger	TQ 4A charger

Geometry Chart

B B Drop	2.6
B B Height	34.7
Chainstay Length	44.4
Eff Seat Tube Angle	77.0°
Eff Top Tube	56.3
Frame Reach	41.8
Frame Size Letter	S
Frame Size Number	15.5"
Frame Stack	63.3
Head Angle	63.4°
Head Tube Length	11
Offset	4.4
Seat Tube	37
Seat Tube Angle	71.5°
Standover	76.3
Trail	13.8
Wheelbase	121.3
Wheel Size	29"
