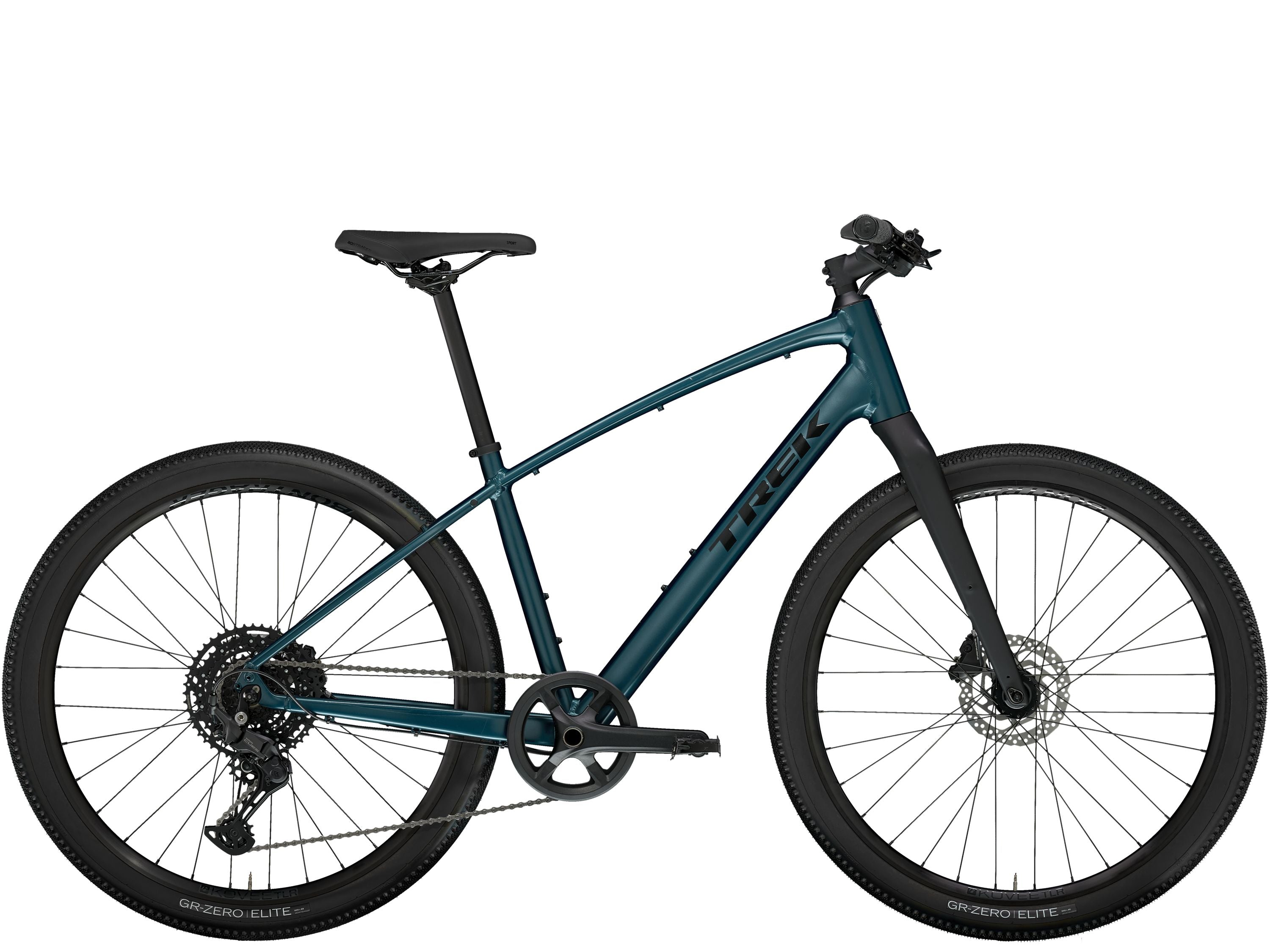

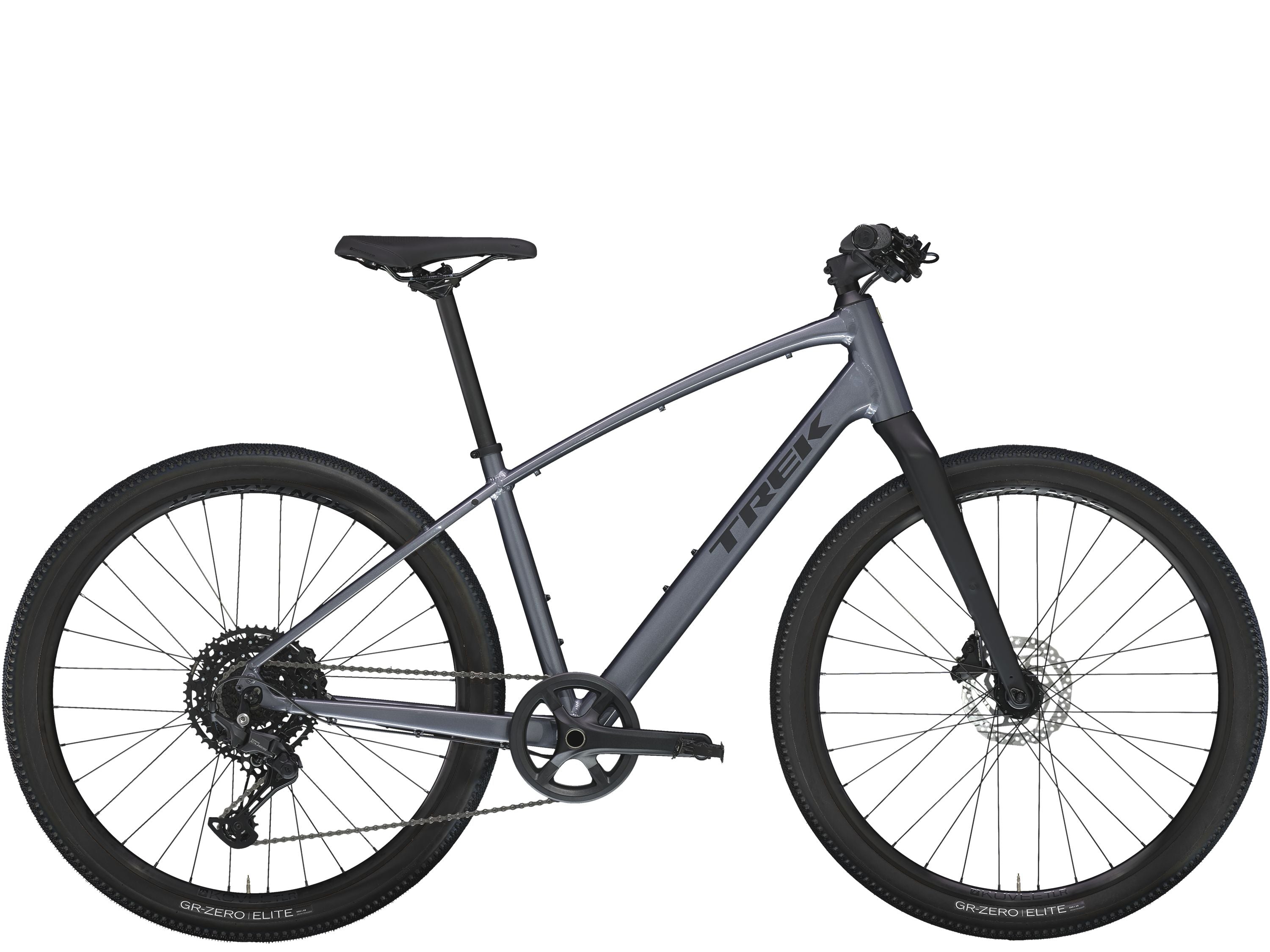

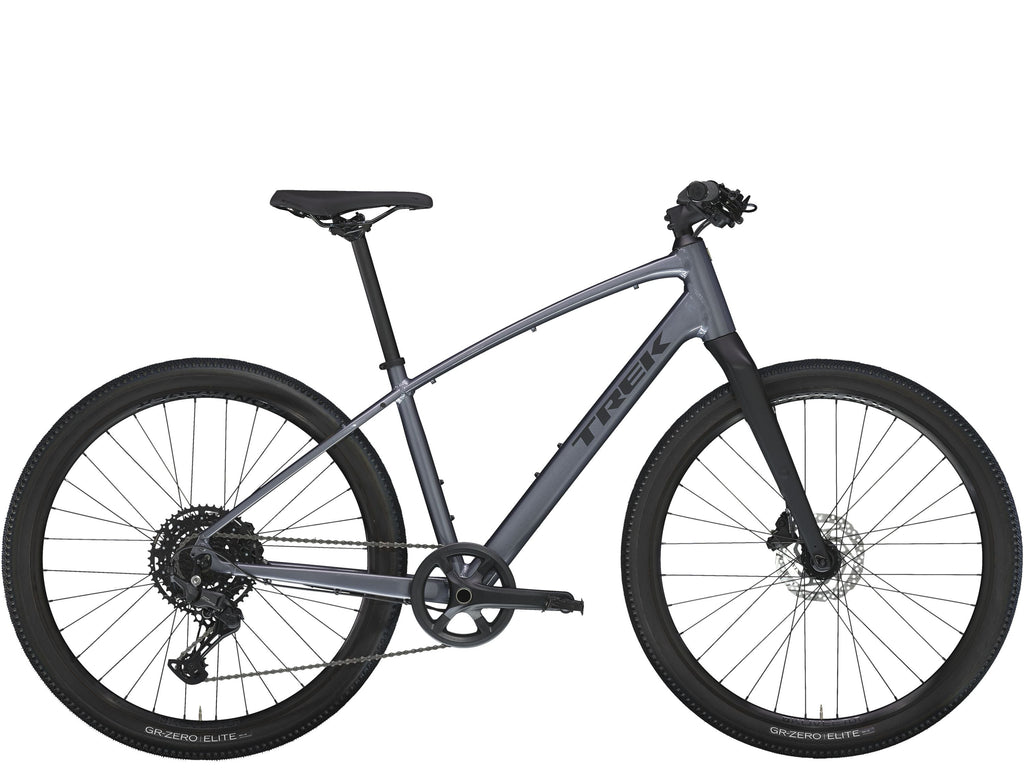

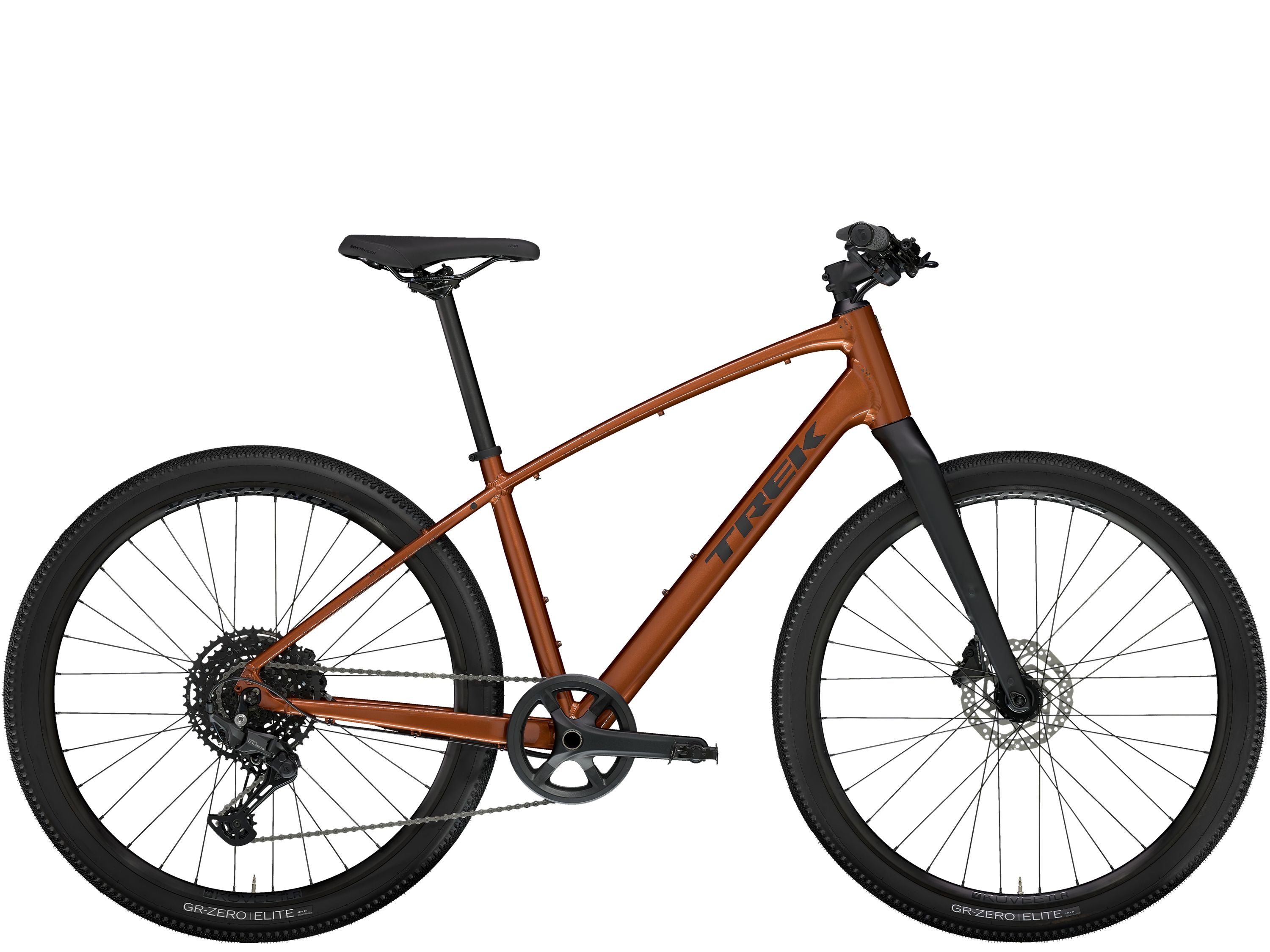

Trek Dual Sport 3 Gen 5

£789.00

£789.00 £1,578.00

Taxes included. Shipping calculated at checkout.

Color GALACTIC GREY PENNYFLAKE DARK AQUATIC

Size S M L XL

Dual Sport 3 is a high-performance, go-anywhere hybrid bike that transitions from pavement to rougher terrain with ease. It has a light frame and a simple 1x Shimano CUES drivetrain with a wide range of gears. Its wide Bontrager Kovee wheels and wide gravel tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, rail trails, and light dirt paths.

Stiff wheels and wide tires give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
The 1x drivetrain gives you all the gears you need and none you don’t
Versatile gravel tires are fast on pavement and grippy on rougher terrain
The cables are routed internally, which protects them from the elements and adds to the bike's sleek look

Shimano CUES

Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.

Shimano LINKGLIDE

LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

Frame	Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork	Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Tire	Bontrager GR0 Elite, wire bead, puncture protection, 60 tpi, 650x50mm
Hub Front	Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub Rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rim	Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
Skewer Front	139x5mm bolt-on
Skewer Rear	152x5mm QR
Shifter	Shimano CUES U6000 w/optical gear display, 10 speed
Rear Derailleur	Shimano CUES U6000 GS
Crank	Prowheel alloy, 40T narrow-wide ring, 170mm length
Cassette	Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain	Shimano LG500, 9/10/11 speed
Brake	Shimano hydraulic disc, MT201 lever, UR300 caliper
Brake Rotor	Shimano RT26, 6-bolt, 160mm
Pedal	Wellgo nylon body, alloy cage
Saddle	Bontrager H1
Seatpost	Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Handlebar	Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width
Stem	Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Grips	Bontrager XR Endurance Elite

Geometry Chart

B B Drop	6
B B Height	28.9
Chainstay Length	44.7
Eff Top Tube	54.5
Frame Reach	37.8
Frame Size Letter	S
Frame Stack	57.3
Head Angle	69.8°
Head Tube Length	14
Offset	3.9
Seat Tube	37.5
Seat Tube Angle	73.8°
Standover	72.3
Trail	8.7
Wheelbase	105.2
Wheel Size	27.5"
